China Competitive Flat Transmission Belt Industrial Flat Belt Transmission Flat Belt
Product Description
Product Description
FOB
We are manufacturer of the V-belt, from 1975 year, we have prepared enough moulds, so we can produce every type of belt

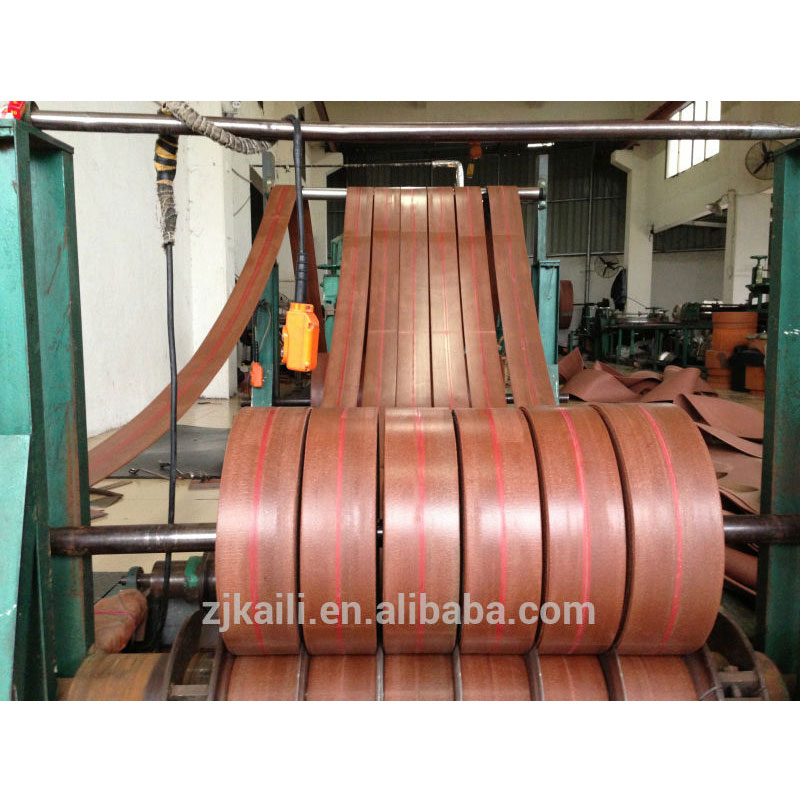

The Flat transmission belt including two types : 28OZ&32OZ,Both of them have four colors : Light brown, yellow,orange and black .
Product specification series
The Flat transmission belt including two types : 28OZ&32OZ,Both of them have four colors : Light brown, yellow,orange and black .
Product specification series
Unit (mm)
Width range | Plies | Allowance |
10,20,25,30,40,45,50,55,60 | 3-4 | ±2 |
65,70,75,80,90,100,150 | 3-6 | ±3 |
140,160,180,200,224,250 | 4~6 | ±4 |
280,300,315,350,400,450,550,600 | 4~10 | ±5 |
Cross section :
Mould-edge type
Cutting-edge type
Wrapped V-belt ( Common V-belt )
( Unit : mm , Price :FOB Ningbo )
Mould-edge type
Cutting-edge type
Wrapped V-belt ( Common V-belt )
( Unit : mm , Price :FOB Ningbo )
Type | Width(dp) | Upper width (b) | Height(h) | Wedge angle |
Z(O,M) | 8.5 | 10 | 6 | 40° |
A | 11 | 13 | 8 | |
B | 14 | 17 | 11 | |
C | 19 | 22 | 14 | |
D | 27 | 32 | 19 | |
E | 32 | 38 | 25 |
Narrow V-belt
(Unit : mm)
(Unit : mm)
Type | Width(dp) | Height(h) | Wedge angle |
SPZ | 9.7 | 8 | 40° |
SPA | 12.7 | 10 | |
SPB | 16.3 | 13 | |
SPC | 22 | 18 | |
3V | 9.5 | 8 | |
5V | 16 | 13.5 | |
8V | 25.5 | 23 |
USD
Ningbo port
L/C T/T
10 Kilometer
35000 Bag/Bags / Month
Amount 15X20" container/Month
1.Plastic bags
2. Carton box
Usually : 1X20" container is 30 days .
Ningbo port
L/C T/T
10 Kilometer
35000 Bag/Bags / Month
Amount 15X20" container/Month
1.Plastic bags
2. Carton box
Usually : 1X20" container is 30 days .
