Basic Info

Model No.: TC

Type: EP300

Material: Rubber

Inside Material: Polyester

Feature: Oil-Resistant, Tear-Resistant, Heat-Resistant, Cold-Resistant, Wear-Resistant

Tensile Strength: Strong

Side Wall: 300

Product Description

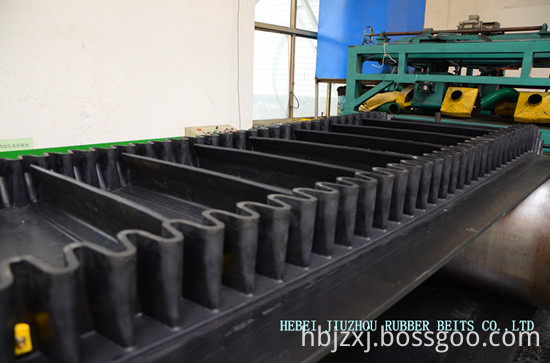

Corrugated Sidewall Conveyor Belt

In inclined transport with JIUZHOU corrugaged sidewall conveyor belts. We use laterally stable conveyor belts -the JIUZHOU cross-stablising basic belts. This lateral stability makes it possible to change horizontal to vertical direction of travel to vertical and vice versa.


Structure

Four parts: Top cover rubber; Bottom cover rubber; Reinforced core; Cross rigid.
Min top cover thickness: 3 mm;
Min bottom cover thickness: 1.5 mm.
Belt carcass ( casing ply): EP, Cotton, Nylon Steel Cord

Characteristcis:
1) Conveying angle 30~90ºC
2) Smaller area covering;
3) Bigger throughput, higher hoisting height;
4) Smooth transition from horizontal to tilt or vertical;
5) Saving time
6) Strong conveying capacity

Cleat:
Cleat types: T, TC
The cleat is made of enforced fabric, solid, anti-shock to avoid distortion.
"T" cleat are normally used up to 40 degree
"TC" normally used from 0 degree to 90
Classify by constructure:
1) Conventional type
2) Transverse reinforcement type: XE, XE+2, XE-SC+2 etc
Standard: GB/T7984-2001, DIN22102, BS490, AS1332, RMA, JISK6322, SABS1173 etc
Application:
Suitable for conveying easy sifted materials in powder, granulated and small lump, paste and liquid, widely used in loading and unloading transportation systems such as ore mine, coal mine, stations and wharf to conveying materials in shape of lump, partials, and powders, etc.
Why choose us?
1. High level of choosing upstream supplier: like carcass, Wuxi Taiji being our strategic partner supplying qualified fabric.
All raw materials purchase is accompanied with quality test certificate.
2. Strict QC system over the whole process of production: raw materials - semi-finished product - finished product
Every one step of semi-finished product shall be tested before next step of processing. Unqualified pieces are now allowed for next step of processing.
3. All finished products shall get tested, and onlt qualified products can leave factory.

Items

WK 60

WK 80

WK 120

WK 160

S 160

S 200

S 240

S 300

Height of sidewall HW mm

60

80

120

160

160

200

240

300

Bottom width of sidewall BF mm

50

65

82

85

75

75

90

90

Wave of sidewall BW mm

36

46

52

62

65

65

84

84

Pitch of sidewall wave TW mm

50

60

70

70

65

65

70

70

Weight of sidewall kg/m

1

1.38

3.04

4.4

4.65

6.2

8.3

10.85

Length of wave in Straight m/m

0.67

0.92

2.03

3.2

2.7

3.6

4.8

6.3

DIA. Of roller DI mm

400

500

600

800

800

900

1000

1200

Sidewall pinch roller Dia. Min D2 mm

280

340

360

480

480

600

420

600

Height of cleat HQ mm

55

75

110

145

145

180

220

280

Bottom width of cleat FB mm

65

80

75

70

120

TC

145

TC

145

TC

200

TC

200

TC

200

Length of cleat in flat m/m

0.6

0.67

1.02

1

1.713

1.83

2.37

2.3

3.39

5

6.6

Applicable angle of different cleat

T - 45 TC - 60 TC - 90 TC TCS - 90

Size of Inset

60-300

112m close length 0

Contact us if you need more details on Corrugated Conveyor Belt. We are ready to answer your questions on packaging, logistics, certification or any other aspects about TC Cleat Conveyor Belt、S200 Sidewall Conveyor Belt. If these products fail to match your need, please contact us and we would like to provide relevant information.
